4K UHD Blu-ray players aren’t cheap. Currently, purchasing a solid consumer-grade player can set you back upwards of $300, and that’s just for a fairly basic unit. However, there exists an even higher 4K UHD player tier on the market with pricing in the quadruple digits: reference-class disc players.
4K UHD Blu-ray reference players take audiovisual playback to the logical extreme, being decked out with features, advanced AV standards and protocols, and much more. Here’s the lowdown on what exactly constitutes a reference player, as well as why these particular players are priced as high as they are.
UHD Blu-ray technology
Trivia challenge
4K discs, Dolby Vision, and beyond — how much do you really know about UHD
Blu-ray?
4K VideoAudioHardwareFormatsStandards
What is the maximum video resolution supported by the UHD Blu-ray format?
Correct! UHD Blu-ray supports a maximum resolution of 3840 x 2160,
commonly known as 4K UHD. This is four times the pixel count of standard 1080p Full HD Blu-ray,
delivering stunning on-screen detail.
Not quite. The answer is 3840 x 2160, which is standard 4K UHD
resolution. While 8K (7680 x 4320) exists as a consumer format, UHD Blu-ray tops out at 4K — still a
massive leap over traditional Full HD discs.
What is the typical maximum data capacity of a dual-layer UHD Blu-ray disc?
Correct! A dual-layer UHD Blu-ray disc can hold up to 100GB of data.
This extra capacity over standard Blu-ray’s 50GB ceiling allows studios to pack in high-bitrate 4K video
alongside lossless audio tracks and bonus features.
Not quite. The correct answer is 100GB for a dual-layer UHD Blu-ray
disc. Standard Blu-ray maxes out at 50GB on a dual-layer disc, but UHD Blu-ray needed more headroom to
accommodate the much larger 4K video files and premium audio formats.
Which of the following lossless audio formats is natively supported on UHD Blu-ray
discs?
Correct! DTS-HD Master Audio is one of the lossless audio formats
officially supported by the UHD Blu-ray specification. It delivers bit-for-bit identical audio to the
studio master, making it a favourite among home cinema enthusiasts.
Not quite. DTS-HD Master Audio is the correct answer. Dolby Digital Plus
is actually a lossy compressed format, not lossless, while MP3 Surround and AAC 5.1 are not part of the
UHD Blu-ray audio specification at all.
Which High Dynamic Range (HDR) format was mandatory in the original UHD Blu-ray
specification?
Correct! HDR10 is the mandatory baseline HDR format for all UHD Blu-ray
discs. It uses static metadata and supports up to 10-bit colour depth with a peak brightness of 10,000
nits, significantly improving contrast and colour range over SDR content.
Not quite. HDR10 is the mandatory HDR format in the UHD Blu-ray spec.
Dolby Vision and HDR10+ are optional enhancements that some studios add on top, but every UHD Blu-ray
player and disc must support HDR10 as the baseline standard.
What laser colour is used in UHD Blu-ray players to read discs?
Correct! UHD Blu-ray players use a violet (blue-violet) laser with a
wavelength of 405nm, the same as standard Blu-ray. This shorter wavelength compared to the red laser
used in DVDs allows data to be packed much more densely on the disc surface.
Not quite. The answer is violet — specifically a blue-violet laser at
405nm. DVDs use a red laser at 650nm, and CDs use an infrared laser at 780nm. The shorter the
wavelength, the more data can be stored, which is why Blu-ray outpaces its predecessors.
What maximum video bitrate does the UHD Blu-ray specification allow for video
content?
Correct! The UHD Blu-ray specification allows a maximum video bitrate of
82 Mbps. This is substantially higher than standard Blu-ray’s 40 Mbps ceiling, enabling richer detail,
smoother gradients, and less compression artefacts in 4K content.
Not quite. The correct maximum video bitrate is 82 Mbps. Standard
Blu-ray tops out at 40 Mbps, and while streaming services like Netflix offer 4K, they typically deliver
it at just 15–25 Mbps — making physical UHD Blu-ray the highest quality option available to consumers.
Which video codec is most commonly used to encode 4K content on UHD Blu-ray discs?
Correct! H.265, also known as HEVC (High Efficiency Video Coding), is
the dominant codec used on UHD Blu-ray. It offers roughly twice the compression efficiency of H.264,
meaning studios can deliver 4K footage at high quality without exhausting the disc’s storage capacity.
Not quite. H.265 (HEVC) is the correct answer. While H.264 was the
workhorse of standard Blu-ray, it simply isn’t efficient enough to handle 4K video at acceptable quality
levels within the disc’s bitrate limits. AV1 is a newer codec but isn’t part of the UHD Blu-ray spec.
Which of the following connection types is required to pass a UHD Blu-ray signal at
full 4K HDR quality from a player to a TV?
Correct! HDMI 2.0 or higher is required to carry a 4K HDR signal from a
UHD Blu-ray player to a display. HDMI 2.0 supports the 18 Gbps bandwidth needed for 4K at 60fps with
HDR, whereas HDMI 1.4 maxes out at 4K/30fps without HDR support.
Not quite. HDMI 2.0 or higher is the correct answer. HDMI 1.4 can
technically carry a 4K signal but only at 30fps and without HDR, making it insufficient for the full UHD
Blu-ray experience. Component video is an analogue connection and cannot carry 4K signals at all.
Your Score
/ 8
Thanks for playing!
What is a 4K UHD Blu-ray reference player?
An ultra-premium disc player designed for cinephiles
Reference-grade 4K UHD Blu-ray players aren’t your run-of-the-mill disc playing units. Rather than striving for ‘good enough,’ they set out to offer the most exacting of audiovisual playback quality — playback that’s as true to the source material in question as feasibly possible.

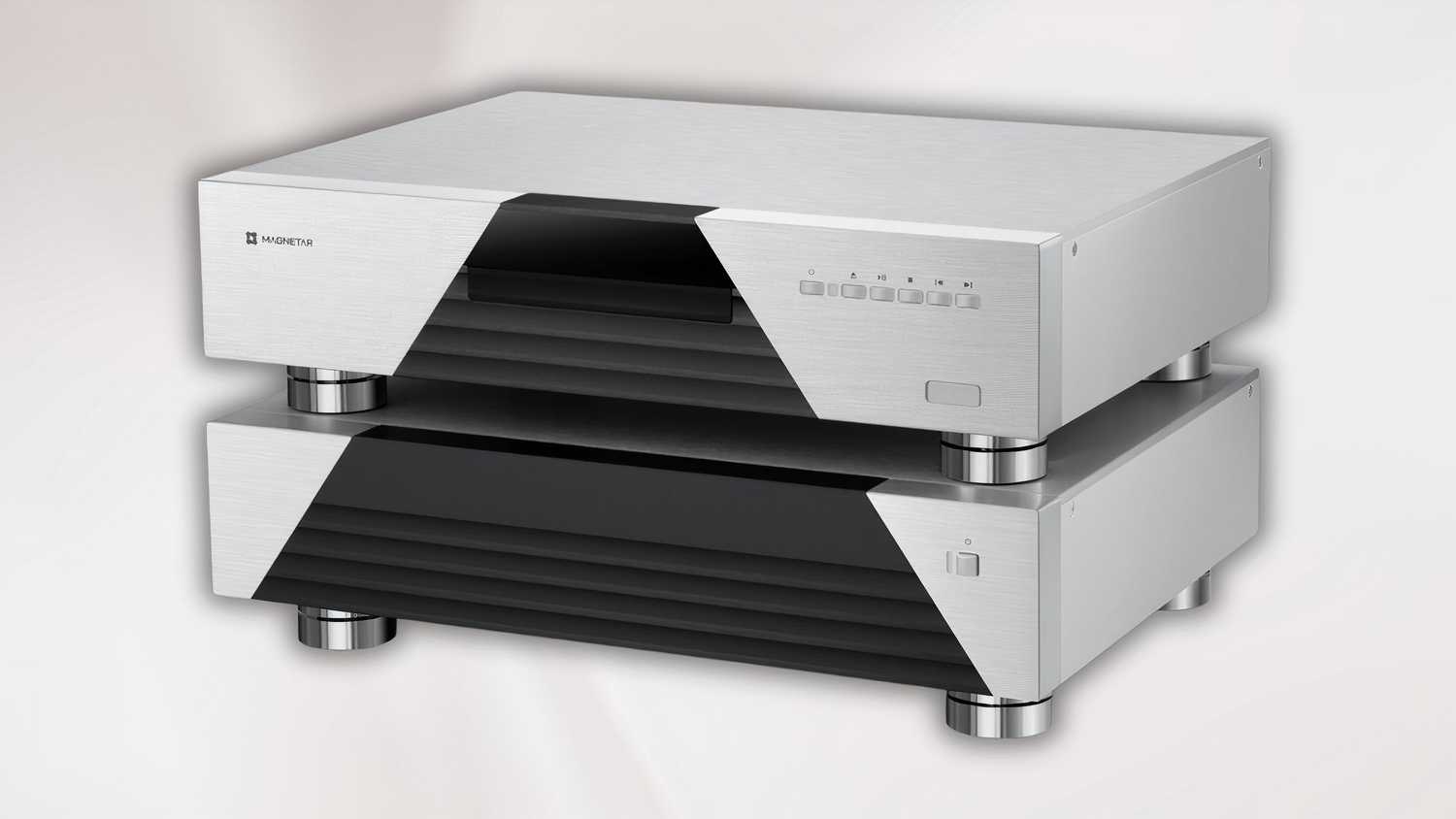

How players go about achieving reference-grade playback varies. For example, the $12,000 Magnetar ULTIMA features a separate DC power supply to isolate electrical noise, a master reference clock to ensure signal transmission integrity, and a double-layered casing to reduce resonance.
Across the board, reference players feature state-of-the-art AV features.
The $1,300 Panasonic DP-UB9000, meanwhile, is far less extreme, opting instead to include a dedicated HCX processor for rendering nuanced color tones, as well as analog audio circuits with a high-end D/A converter and XLR balance technology, and an alumite-treated aluminum chassis deigned with a lower center of gravity.
Across the board, reference players feature state-of-the-art AV features like Dolby Vision, HDR 10+, HLG, Dolby Atmos, 7.1 channel audio output, and more. Many also feature twin HDMI ports, a 32-bit digital to analog converter (DAC), and dedicated upscaling hardware to improve the playback quality of standard Blu-ray discs and DVDs.
Why are 4K UHD Blu-ray reference players so expensive?
Reference-grade hardware costs a pretty penny
4K UHD Blu-ray reference players are as pricey as they are, thanks to their advanced and fine-tuned hardware components. To achieve optimal video and sound quality, custom parts are oftentimes needed, as is dedicated engineering work to ensure the chassis is built to reduce vibrations and other forms of interference.
Enthusiasts are often willing to spend far more money on a piece of technological equipment than, say, the general population is, which is why a whole separate class of reference-class players exists in the first place. Cinephiles demand the best of the best, and the best tech naturally commands a heftier price tag.
…the best tech naturally commands a heftier price tag.
Of course, the market for ultra-high-end disc players is fairly small, with reference-grade hardware being a particular niche within an already small physical media landscape. With this in mind, there aren’t nearly as many reference players on the market as there otherwise might’ve been if streaming were to have never taken off.
As it stands, then, most 4K UHD players fall under the more mainstream category that hovers around the $300-$500 mark. Such players aren’t reference-grade, and thus aren’t as finely tuned for pixel-perfect playback, but they are far more approachable and still packed with AV features of their own.
